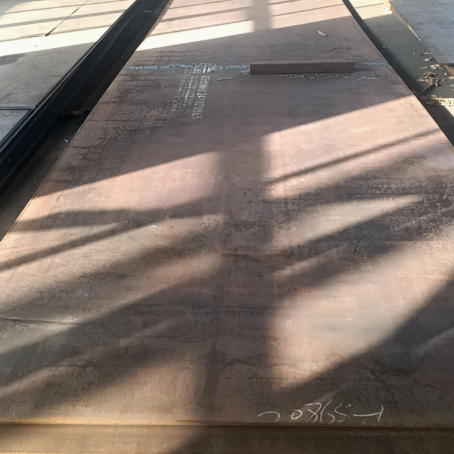

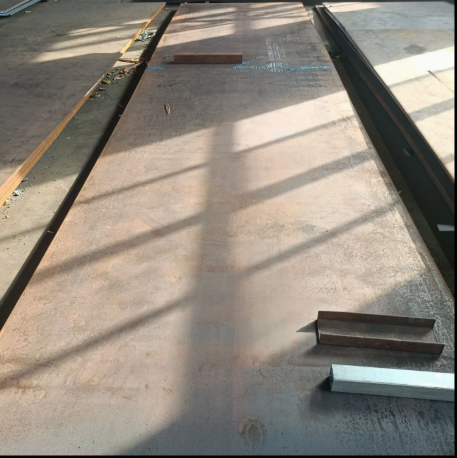

S355J0WP-EN 10025-5 Corten Steel Plate

Product Introduction

S355J0WP is a structural weather-resistant steel grade under EN 10025-5 standard. It is specially designed for use in outdoor environments where durability and resistance to atmospheric corrosion are essential.

This steel contains alloying elements such as copper, chromium, and phosphorus, which help form a stable oxide layer on the surface—known as a protective patina —reducing the need for painting or coating over time.

Key Characteristics

• Excellent Corrosion Resistance: Forms a protective rustForms a protective rust layer when exposed to the atmosphere, minimizing further corrosion.

• Structural Strength: YieldYield strength ≥ 355 MPa, suitable for heavy-duty and load-bearing applications.

• Environmentally Friendly: Eliminates the need for painting in most outdoor settings, reducing VOC emissions and long-term maintenance costs.

• EN Standard Certified: Complies with EN 10025-5 for weathering structural steels.

Typical Applications

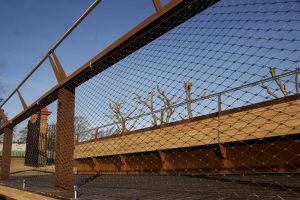

• Architectural facades and cladding

• Industrial chimneys and steel structures

• Bridges, walkways, and railings

• Outdoor sculptures and landscape elements

• Containers, tanks, and structural supports in rural or urban environments

Mechanical Properties

• Yield Strength: ≥ 355 MPa (for thickness ≤ 16mm)

• Tensile Strength: 470 – 630 MPa

• Elongation: ≥ 20%

• Impact Energy: 27J at 0°C (J0 indicates impact tested at 0°C)

Chemical Composition (Typical)

Available Dimensions

• Thickness: 2mm – 80mm

• Width: Up to 3000mm

• Length: Up to 12000mm or as required

• Custom cutting, bending, welding, and surface treatments available

Why Choose S355J0WP?

S355J0WP combines strength, durability, and aesthetics in a single material. Whether for modern architecture or long-lasting infrastructure, it provides a cost-effective and eco-friendly solution for steel structures exposed to the environment.

Our steel plates are produced with strict quality control and are available with EN 10204 3.1 or 3.2 certificates upon request.
