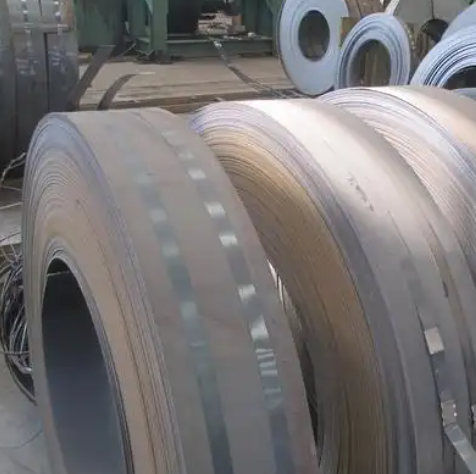

JIS G 3114 Corten Steel Coil-894

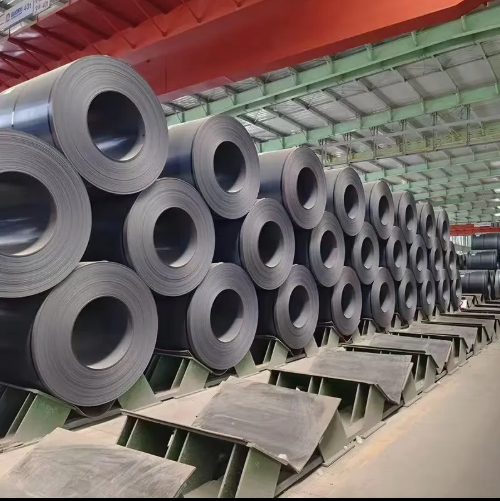

JIS G 3114 Corten Steel Coil-891
JIS G 3114 Corten Steel Coil-thumbnail-893
JIS G 3114 Corten Steel Coil-thumbnail-894
JIS G 3114 Corten Steel Coil-thumbnail-891

JIS G 3114 Corten Steel Coil

Tel/WhatsApp: +86 15824687445

Product Specifications

JIS G 3114 Corten Steel Coil is a Japanese industrial standard for hot-rolled atmospheric corrosion-resistant steels used in welded structures. This steel is developed for structures exposed to outdoor environments where rust protection is essential but coatings are not preferred.

JIS G 3114 Corten Steel Coil

The steel coils naturally develop a stable oxide layer (patina) that slows further corrosion and enhances durability, making it ideal for bridges, guardrails, containers, and other infrastructure applications throughout Asia and beyond.


🔹 Available Grades

Standard Available Grades
JIS G 3114 SMA400AW, SMA400BW, SMA400CW, SMA400AP, SMA400BP, SMA400CP, SMA490AW, SMA490BW, SMA490CW, SMA490AP, SMA490BP, SMA490CP, SMA570W, SMA570P

Each grade differs slightly in strength, impact resistance, and chemical composition to meet the specific demands of various welded applications.


🔹 Key Features

  • Excellent resistance to atmospheric corrosion

  • Natural rust finish eliminates the need for painting

  • Good mechanical properties for welded structures

  • Ideal for structural and architectural outdoor use

  • Low maintenance and high longevity in service


🔹 Typical Mechanical Properties (SMA490AW as reference)

Property Value
Yield Strength ≥ 355 MPa
Tensile Strength 490 – 610 MPa
Elongation ≥ 19%
Impact Resistance ≥ 27 J at 0°C
Corrosion Resistance 6–8× higher than regular steel

🔹 Surface Finish

  • As-rolled for natural rusting process

  • Pre-rusted and pickled finish available

  • Oiled surface optional to prevent early-stage rusting


🔹 Coil Specifications

Parameter Range (Customizable)
Thickness 1.6 mm – 12 mm
Width 600 mm – 1800 mm
Coil Weight Up to 20 MT
Coil ID / OD As per customer request
Edge Condition Mill/slit edge available
Tolerances As per JIS G 3193 or request

🔹 Applications

  • Welded bridge and highway structures

  • Containers and transportation vehicles

  • Power transmission towers and supports

  • Urban infrastructure and railway components

  • Outdoor cladding, fencing, and landscape structures


🔹 Why Choose JIS G 3114 Corten Steel Coil

  • High-performance weathering steel approved in Japan

  • Trusted for critical infrastructure and welded projects

  • Flexible in fabrication and long-term use outdoors

  • Export-friendly material with JIS inspection certificates

  • Competitive pricing and ready stock in major grades
