Corten A Atmospheric Corrosion Resistant Steel Plate

E-mail： [email protected]

Tel/WhatsApp： +86 15824687445

Get a quote

Product Specifications

Corten A Atmospheric Corrosion Resistant Steel Plate Size(mm) GNEE STEEL Supply:
(6-50)*(1600-4700)
Corten A weathering steel Delivery Condition:hot rolled
Corten A weather resistant steel Application:To be used for railway locomotives &vehicles bridges, steel towers, mastsand other structural parts.

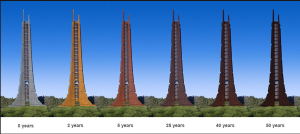

In the initial stage of application, COR-TEN shows a yellowish appearance. This ie followed by a gradual change
in the color of the protective rust from brown to a stable dark brown after one to two years in general application
environmente. Afterwards, the coloration showe no clear change except perhape to a deeper dark brown.
Corten A Weathering Steel: Composition, Applications, and Protective Properties
Corten A is a specialized weathering-resistant alloy formulated through precise alloying of copper, chromium, and nickel, with the addition of phosphorus to optimize performance in specific environments. This unique composition enhances its suitability for gas flue systems and architectural cladding where corrosion resistance and aesthetic appeal are prioritized.While Corten A excels in these roles, it is not advised for structural applications requiring high load-bearing capacities. For such scenarios, alternatives like Corten B (with improved strength) or S355J2W steel (European weathering grade) are recommended to ensure mechanical integrity.
A defining feature of Corten A is its ability to interact with atmospheric conditions, forming a stable, self-protective patina. This oxidized layer serves dual purposes:
1. Maintenance Reduction: Eliminates the need for protective coatings, significantly lowering lifecycle costs.
2. Aesthetic Consistency: Develops a uniform, rust-toned finish over time, ideal for modern architectural facades or industrial chimneys seeking natural weathering effects.

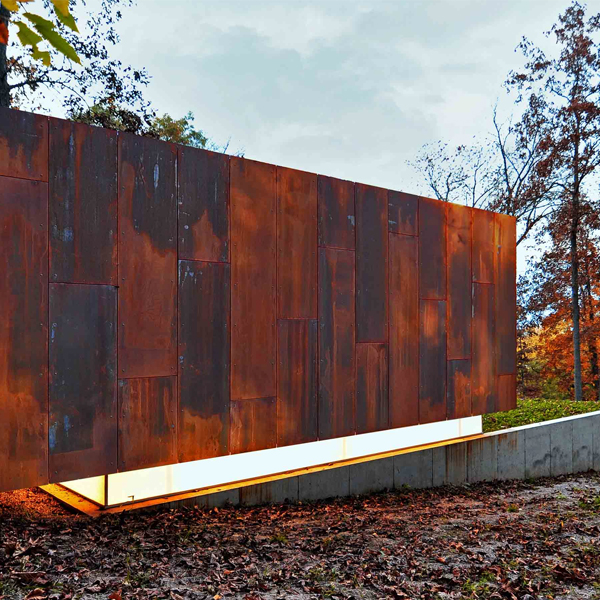

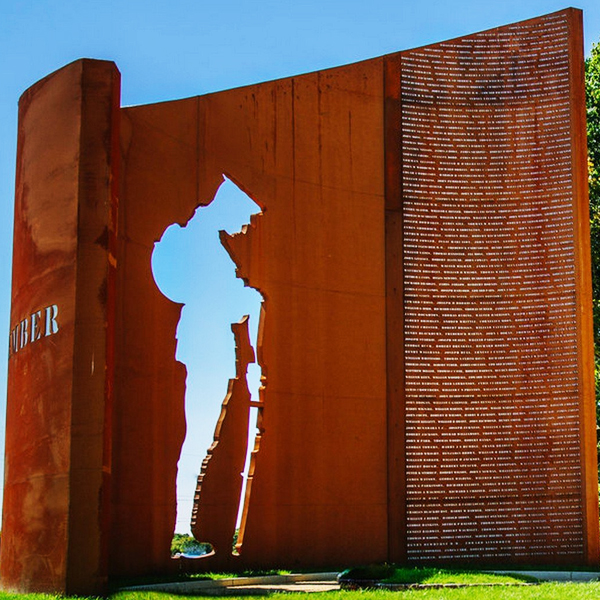

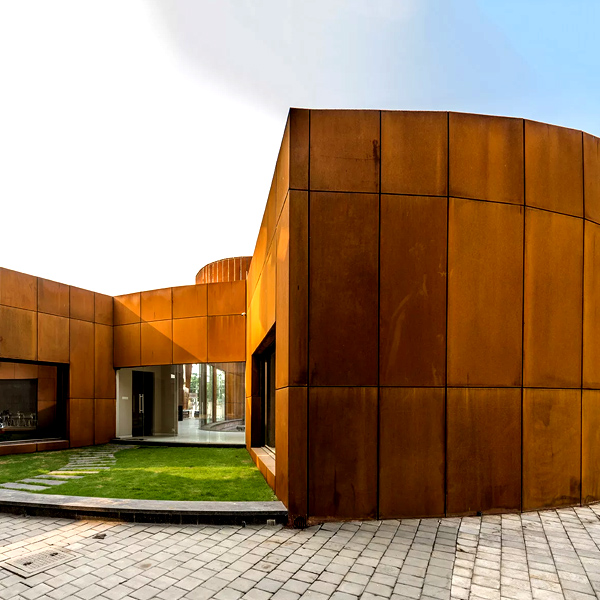

Key applications include decorative building exteriors, exhaust stacks, and landscape elements where visual harmony with outdoor environments is desired. For projects demanding both corrosion resistance and structural robustness, Corten B’s higher tensile strength and carbon content offer a balanced solution.
Corten A Chemical Components

Grade C Si Mn P S Cu Ni Cr V N

Corten-A 0.12 0.25-0.75 0.20-0.50 0.07-0.15 0.03 0.25-0.55 0.65 0.50-1.25

Corten-B 0.16 0.30-0.50 0.80-1.25 0.03 0.03 0.25-0.40 0.4 0.40-0.65 0.02-0.10

Corten A – Mechanical Properties
The mechanical properties of Corten A are outlined in the following table.

Grade Thickness (mm)
Strip Products Plate Products Yield Strength
Rel N/mm²
Minimum Tensile Strength
Rm N/mm²
Minimum Elongation
A50 %
Minimum

Corten A 2 – 12 6 – 12 345 485 20

Other Related Grades Of Corrosion Resistant Plates We Can Supply:

No	Type	Applied Standard	Grade	Size(mm)	Delivery Condition	Application
1	Sea water Corrosion Resistant Plates	standard	10CrMoAI	(6-50)x (1600-4700)	hot rolled	Mainly used for manufacturing the pipeline and equipment. It is ideal and fabrication material for the coastal power plants, offshore oil, natural gas and petrochemical factory coastal transport of water and also used for flange valve.
2	Sulfuric acid dew point Corrosion Resistant Plates	standard	Q345NS	(6-50)x (1600-4700)	hot rolled	Mainly used for chimney and flue, preheating equipment, desulfurization equipment (collector, GGH), chemical storage tank, the air preheater of boiler and pressure vessel, garbage incineration vessels containing sulfur corrosion medium furnace, blower, container, railway vehicles, oil derrick and oil platforms and petrochemical equipment
3	Atmospheric Corrosion Resistant Steel Plates	ASTM A817、 ASTM A242, EN10025-5、 ASTM A709, ASTM A588、 JIS G3114、 GB/T 4171- 2008	Corten A Corten B S355JOW,S355J2W, S355JOWP,S355J2WP ,A709Gr50W,A709Gr5 0WP,A588GrK,SMA49 0CW,SMA490CP,Q35 5NHC,Q235GNHL,Q3 55GNHC	(6-50)x (1600-4700)	hot rolled	To be used for railway locomotives & vehicles bridges, steel towers, masts, and other structural parts
4	High strength atmospheric Corrosion Resistant steel Plates	railway locomotives & vehicles special specification、 JIS 311	Q450NQR1, SMA570W	(6-50)x (1600-4700)	hot rolled	To be used for railway locomotives & vehicles bridges,steel towers,masts, and other structural parts
